从一个例子初探vue3架构

2023-10-27 22961

从一个例子开始(更新流程)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
// option 模式
<template>
<div class="about">
  <h1>This is an about page</h1>
  <div @click="increase">{{count}}</div>
  </div>
</template>
<script>
  export default {
    data() {
      return {
        count:0
      }
    },
    methods:{
      increase(){
        this.count++
      }
    }
  }
</script>
<style>

  @media (min-width: 1024px) {
    .about {
      /*min-height: 100vh;*/
      /*display: flex;*/
      /*align-items: center;*/
    }
  }
</style>

this.count (get this.count)++

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
// /@vue/runtime-core/dist/runtime-core.esm-bundler.js
const PublicInstanceProxyHandlers = {
    get({ _: instance }, key) {
      if (key[0] !== '$') {
              const n = accessCache[key];
              if (n !== undefined) {
                  switch (n) {
                      case 1 /* SETUP */:
                          return setupState[key];
                      case 2 /* DATA */:
                          return data[key];
                      case 4 /* CONTEXT */:
                          return ctx[key];
                      case 3 /* PROPS */:
                          return props[key];
                      // default: just fallthrough
                  }
              }
              else if (setupState !== EMPTY_OBJ && hasOwn(setupState, key)) {
                  accessCache[key] = 1 /* SETUP */;
                  return setupState[key];
              }
              else if (data !== EMPTY_OBJ && hasOwn(data, key)) {
                  accessCache[key] = 2 /* DATA */;
                  return data[key];
              }
              else if (
              // only cache other properties when instance has declared (thus stable)
              // props
              (normalizedProps = instance.propsOptions[0]) &&
                  hasOwn(normalizedProps, key)) {
                  accessCache[key] = 3 /* PROPS */;
                  return props[key];
              }
              else if (ctx !== EMPTY_OBJ && hasOwn(ctx, key)) {
                  accessCache[key] = 4 /* CONTEXT */;
                  return ctx[key];
              }
              else if (!__VUE_OPTIONS_API__ || shouldCacheAccess) {
                  accessCache[key] = 0 /* OTHER */;
              }
          }
    }
}

this.count++(set this.count)


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
// /@vue/runtime-core/dist/runtime-core.esm-bundler.js
const PublicInstanceProxyHandlers = {
  //...
  // instance为vue实例
  set({ _: instance }, key, value) {
    const { data, setupState, ctx } = instance;
    if (setupState !== EMPTY_OBJ && hasOwn(setupState, key)) {
      setupState[key] = value;
      return true;
    }
    else if (data !== EMPTY_OBJ && hasOwn(data, key)) {
      data[key] = value;
      return true;
    }
    else if (hasOwn(instance.props, key)) {
      (process.env.NODE_ENV !== 'production') &&
        warn(`Attempting to mutate prop "${key}". Props are readonly.`, instance);
      return false;
    }
    if (key[0] === '$' && key.slice(1) in instance) {
      (process.env.NODE_ENV !== 'production') &&
        warn(`Attempting to mutate public property "${key}". ` +
             `Properties starting with $ are reserved and readonly.`, instance);
      return false;
    }
    else {
      if ((process.env.NODE_ENV !== 'production') && key in instance.appContext.config.globalProperties) {
        Object.defineProperty(ctx, key, {
          enumerable: true,
          configurable: true,
          value
        });
      }
      else {
        ctx[key] = value;
      }
    }
    return true;
  },
  //....
}

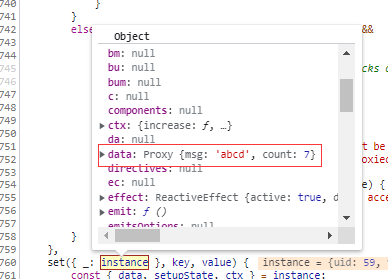

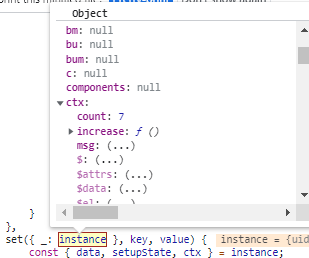

instance



data proxy setter

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
// @vue/reactivity/dist/reactivity.esm-bundler.js
function createSetter(shallow = false) {
    return function set(target, key, value, receiver) {
        let oldValue = target[key];
        if (isReadonly(oldValue) && isRef(oldValue) && !isRef(value)) {
            return false;
        }
        if (!shallow && !isReadonly(value)) {
            if (!isShallow(value)) {
                value = toRaw(value);
                oldValue = toRaw(oldValue);
            }
            if (!isArray(target) && isRef(oldValue) && !isRef(value)) {
                oldValue.value = value;
                return true;
            }
        }
        const hadKey = isArray(target) && isIntegerKey(key)
            ? Number(key) < target.length
            : hasOwn(target, key);
        const result = Reflect.set(target, key, value, receiver);
        // don't trigger if target is something up in the prototype chain of original
        if (target === toRaw(receiver)) {
            if (!hadKey) {
                trigger(target, "add" /* ADD */, key, value);
            }
            else if (hasChanged(value, oldValue)) {
                trigger(target, "set" /* SET */, key, value, oldValue);
            }
        }
        return result;
    };
}

trigger

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
// @vue/reactivity/dist/reactivity.esm-bundler.js
function trigger(target, type, key, newValue, oldValue, oldTarget) {
    const depsMap = targetMap.get(target);
    if (!depsMap) {
        // never been tracked
        return;
    }
    let deps = [];
    if (type === "clear" /* CLEAR */) {
        // collection being cleared
        // trigger all effects for target
        deps = [...depsMap.values()];
    }
    else if (key === 'length' && isArray(target)) {
        depsMap.forEach((dep, key) => {
            if (key === 'length' || key >= newValue) {
                deps.push(dep);
            }
        });
    }
    else {
        // schedule runs for SET | ADD | DELETE
        if (key !== void 0) {
            deps.push(depsMap.get(key));
        }
        // also run for iteration key on ADD | DELETE | Map.SET
        switch (type) {
            case "add" /* ADD */:
                if (!isArray(target)) {
                    deps.push(depsMap.get(ITERATE_KEY));
                    if (isMap(target)) {
                        deps.push(depsMap.get(MAP_KEY_ITERATE_KEY));
                    }
                }
                else if (isIntegerKey(key)) {
                    // new index added to array -> length changes
                    deps.push(depsMap.get('length'));
                }
                break;
            case "delete" /* DELETE */:
                if (!isArray(target)) {
                    deps.push(depsMap.get(ITERATE_KEY));
                    if (isMap(target)) {
                        deps.push(depsMap.get(MAP_KEY_ITERATE_KEY));
                    }
                }
                break;
            case "set" /* SET */:
                if (isMap(target)) {
                    deps.push(depsMap.get(ITERATE_KEY));
                }
                break;
        }
    }
    const eventInfo = (process.env.NODE_ENV !== 'production')
        ? { target, type, key, newValue, oldValue, oldTarget }
        : undefined;
    if (deps.length === 1) {
        if (deps[0]) {
            if ((process.env.NODE_ENV !== 'production')) {
                triggerEffects(deps[0], eventInfo);
            }
            else {
                triggerEffects(deps[0]);
            }
        }
    }
    else {
        const effects = [];
        for (const dep of deps) {
            if (dep) {
                effects.push(...dep);
            }
        }
        if ((process.env.NODE_ENV !== 'production')) {
            triggerEffects(createDep(effects), eventInfo);
        }
        else {
            triggerEffects(createDep(effects));
        }
    }
}

triggerEffects

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
// @vue/reactivity/dist/reactivity.esm-bundler.js
function triggerEffects(dep, debuggerEventExtraInfo) {
    // spread into array for stabilization
    for (const effect of isArray(dep) ? dep : [...dep]) {
        if (effect !== activeEffect || effect.allowRecurse) {
            if ((process.env.NODE_ENV !== 'production') && effect.onTrigger) {
                effect.onTrigger(extend({ effect }, debuggerEventExtraInfo));
            }
            if (effect.scheduler) {
                effect.scheduler();
            }
            else {
                effect.run();
            }
        }
    }

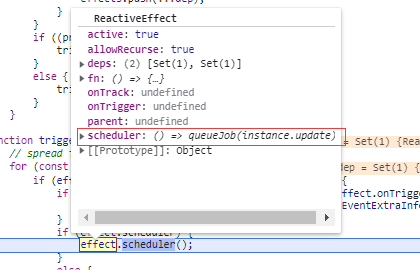

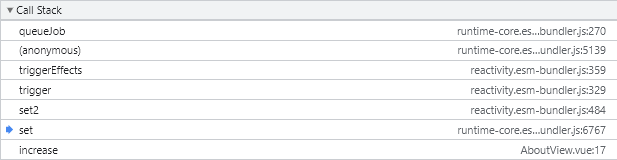

queueJob

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// /@vue/runtime-core/dist/runtime-core.esm-bundler.js
function queueJob(job) {
    // the dedupe search uses the startIndex argument of Array.includes()
    // by default the search index includes the current job that is being run
    // so it cannot recursively trigger itself again.
    // if the job is a watch() callback, the search will start with a +1 index to
    // allow it recursively trigger itself - it is the user's responsibility to
    // ensure it doesn't end up in an infinite loop.
    if ((!queue.length ||
        !queue.includes(job, isFlushing && job.allowRecurse ? flushIndex + 1 : flushIndex)) &&
        job !== currentPreFlushParentJob) {
        if (job.id == null) {
            queue.push(job);
        }
        else {
            queue.splice(findInsertionIndex(job.id), 0, job);
        }
        queueFlush();
    }
}

queueFlush

1
2
3
4
5
6
7
// /@vue/runtime-core/dist/runtime-core.esm-bundler.js
function queueFlush() {
    if (!isFlushing && !isFlushPending) {
        isFlushPending = true;
        currentFlushPromise = resolvedPromise.then(flushJobs);
    }
}

flushJobs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
// /@vue/runtime-core/dist/runtime-core.esm-bundler.js
function flushJobs(seen) {
    isFlushPending = false;
    isFlushing = true;
    if ((process.env.NODE_ENV !== 'production')) {
        seen = seen || new Map();
    }
    flushPreFlushCbs(seen);
    // Sort queue before flush.
    // This ensures that:
    // 1. Components are updated from parent to child. (because parent is always
    //    created before the child so its render effect will have smaller
    //    priority number)
    // 2. If a component is unmounted during a parent component's update,
    //    its update can be skipped.
    queue.sort((a, b) => getId(a) - getId(b));
    // conditional usage of checkRecursiveUpdate must be determined out of
    // try ... catch block since Rollup by default de-optimizes treeshaking
    // inside try-catch. This can leave all warning code unshaked. Although
    // they would get eventually shaken by a minifier like terser, some minifiers
    // would fail to do that (e.g. https://github.com/evanw/esbuild/issues/1610)
    const check = (process.env.NODE_ENV !== 'production')
    // checkRecursiveUpdates 檢查遞歸更新是否存在更新依賴于更新的情況（導致遞歸死循環）
        ? (job) => checkRecursiveUpdates(seen, job)
        : NOOP;
    try {
        for (flushIndex = 0; flushIndex < queue.length; flushIndex++) {
            const job = queue[flushIndex];
            if (job && job.active !== false) {
                if ((process.env.NODE_ENV !== 'production') && check(job)) {
                    continue;
                }
                // console.log(`running:`, job.id) execute job
                callWithErrorHandling(job, null, 14 /* SCHEDULER */);
            }
        }
    }
    finally {
        flushIndex = 0;
        queue.length = 0;
        flushPostFlushCbs(seen);
        isFlushing = false;
        currentFlushPromise = null;
        // some postFlushCb queued jobs!
        // keep flushing until it drains.
        if (queue.length ||
            pendingPreFlushCbs.length ||
            pendingPostFlushCbs.length) {
            flushJobs(seen);
        }
    }
}

run Job

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
// @vue/reactivity/dist/reactivity.esm-bundler.js
class ReactiveEffect {
    constructor(fn, scheduler = null, scope) {
        this.fn = fn;
        this.scheduler = scheduler;
        this.active = true;
        this.deps = [];
        this.parent = undefined;
        recordEffectScope(this, scope);
    }
    run() {
        if (!this.active) {
            return this.fn();
        }
        let parent = activeEffect;
        let lastShouldTrack = shouldTrack;
        while (parent) {
            if (parent === this) {
                return;
            }
            parent = parent.parent;
        }
        try {
            this.parent = activeEffect;
            activeEffect = this;
            shouldTrack = true;
            trackOpBit = 1 << ++effectTrackDepth;
            if (effectTrackDepth <= maxMarkerBits) {
                initDepMarkers(this);
            }
            else {
                cleanupEffect(this);
            }
            return this.fn();
        }
        finally {
            if (effectTrackDepth <= maxMarkerBits) {
                finalizeDepMarkers(this);
            }
            trackOpBit = 1 << --effectTrackDepth;
            activeEffect = this.parent;
            shouldTrack = lastShouldTrack;
            this.parent = undefined;
        }
    }

setupRenderEffect中的componentUpdateFn（mouted render diff update）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
// /@vue/runtime-core/dist/runtime-core.esm-bundler.js
const componentUpdateFn = () => {
            if (!instance.isMounted) {
                let vnodeHook;
                const { el, props } = initialVNode;
                const { bm, m, parent } = instance;
                const isAsyncWrapperVNode = isAsyncWrapper(initialVNode);
                toggleRecurse(instance, false);
                // beforeMount hook
                if (bm) {
                    invokeArrayFns(bm);
                }
                // onVnodeBeforeMount
                if (!isAsyncWrapperVNode &&
                    (vnodeHook = props && props.onVnodeBeforeMount)) {
                    invokeVNodeHook(vnodeHook, parent, initialVNode);
                }
                toggleRecurse(instance, true);
                if (el && hydrateNode) {
                    // vnode has adopted host node - perform hydration instead of mount.
                    const hydrateSubTree = () => {
                        if ((process.env.NODE_ENV !== 'production')) {
                            startMeasure(instance, `render`);
                        }
                        instance.subTree = renderComponentRoot(instance);
                        if ((process.env.NODE_ENV !== 'production')) {
                            endMeasure(instance, `render`);
                        }
                        if ((process.env.NODE_ENV !== 'production')) {
                            startMeasure(instance, `hydrate`);
                        }
                        hydrateNode(el, instance.subTree, instance, parentSuspense, null);
                        if ((process.env.NODE_ENV !== 'production')) {
                            endMeasure(instance, `hydrate`);
                        }
                    };
                    if (isAsyncWrapperVNode) {
                        initialVNode.type.__asyncLoader().then(
                        // note: we are moving the render call into an async callback,
                        // which means it won't track dependencies - but it's ok because
                        // a server-rendered async wrapper is already in resolved state
                        // and it will never need to change.
                        () => !instance.isUnmounted && hydrateSubTree());
                    }
                    else {
                        hydrateSubTree();
                    }
                }
                else {
                    if ((process.env.NODE_ENV !== 'production')) {
                        startMeasure(instance, `render`);
                    }
                    const subTree = (instance.subTree = renderComponentRoot(instance));
                    if ((process.env.NODE_ENV !== 'production')) {
                        endMeasure(instance, `render`);
                    }
                    if ((process.env.NODE_ENV !== 'production')) {
                        startMeasure(instance, `patch`);
                    }
                    patch(null, subTree, container, anchor, instance, parentSuspense, isSVG);
                    if ((process.env.NODE_ENV !== 'production')) {
                        endMeasure(instance, `patch`);
                    }
                    initialVNode.el = subTree.el;
                }
                // mounted hook
                if (m) {
                    queuePostRenderEffect(m, parentSuspense);
                }
                // onVnodeMounted
                if (!isAsyncWrapperVNode &&
                    (vnodeHook = props && props.onVnodeMounted)) {
                    const scopedInitialVNode = initialVNode;
                    queuePostRenderEffect(() => invokeVNodeHook(vnodeHook, parent, scopedInitialVNode), parentSuspense);
                }
                // activated hook for keep-alive roots.
                // #1742 activated hook must be accessed after first render
                // since the hook may be injected by a child keep-alive
                if (initialVNode.shapeFlag & 256 /* COMPONENT_SHOULD_KEEP_ALIVE */) {
                    instance.a && queuePostRenderEffect(instance.a, parentSuspense);
                }
                instance.isMounted = true;
                if ((process.env.NODE_ENV !== 'production') || __VUE_PROD_DEVTOOLS__) {
                    devtoolsComponentAdded(instance);
                }
                // #2458: deference mount-only object parameters to prevent memleaks
                initialVNode = container = anchor = null;
            }
            else {
                // updateComponent
                // This is triggered by mutation of component's own state (next: null)
                // OR parent calling processComponent (next: VNode)
                let { next, bu, u, parent, vnode } = instance;
                let originNext = next;
                let vnodeHook;
                if ((process.env.NODE_ENV !== 'production')) {
                    pushWarningContext(next || instance.vnode);
                }

                // Disallow component effect recursion during pre-lifecycle hooks.
                toggleRecurse(instance, false);
              // 开始调用钩子函数
                if (next) {
                    next.el = vnode.el;
                    updateComponentPreRender(instance, next, optimized);
                }
                else {
                    next = vnode;
                }
                // beforeUpdate hook
                if (bu) {
                    invokeArrayFns(bu);
                }
                // onVnodeBeforeUpdate
                if ((vnodeHook = next.props && next.props.onVnodeBeforeUpdate)) {
                    invokeVNodeHook(vnodeHook, parent, next, vnode);
                }
                // 结束调用钩子函数
                toggleRecurse(instance, true);
                // render  生成更新后的树
                if ((process.env.NODE_ENV !== 'production')) {
                    startMeasure(instance, `render`);
                }
                const nextTree = renderComponentRoot(instance);
                if ((process.env.NODE_ENV !== 'production')) {
                    endMeasure(instance, `render`);
                }
                const prevTree = instance.subTree;
                instance.subTree = nextTree;
                if ((process.env.NODE_ENV !== 'production')) {
                    startMeasure(instance, `patch`);
                }
              // 更新真实dom树
                patch(prevTree, nextTree,
                // parent may have changed if it's in a teleport
                hostParentNode(prevTree.el),
                // anchor may have changed if it's in a fragment
                getNextHostNode(prevTree), instance, parentSuspense, isSVG);
                if ((process.env.NODE_ENV !== 'production')) {
                    endMeasure(instance, `patch`);
                }
                next.el = nextTree.el;
                if (originNext === null) {
                    // self-triggered update. In case of HOC, update parent component
                    // vnode el. HOC is indicated by parent instance's subTree pointing
                    // to child component's vnode
                    updateHOCHostEl(instance, nextTree.el);
                }
                // updated hook
                if (u) {
                    queuePostRenderEffect(u, parentSuspense);
                }
                // onVnodeUpdated
                if ((vnodeHook = next.props && next.props.onVnodeUpdated)) {
                    queuePostRenderEffect(() => invokeVNodeHook(vnodeHook, parent, next, vnode), parentSuspense);
                }
                if ((process.env.NODE_ENV !== 'production') || __VUE_PROD_DEVTOOLS__) {
                    devtoolsComponentUpdated(instance);
                }
                if ((process.env.NODE_ENV !== 'production')) {
                    popWarningContext();
                }
            }
        };

render和patch下回再探(￣▽￣)”

查看评论
